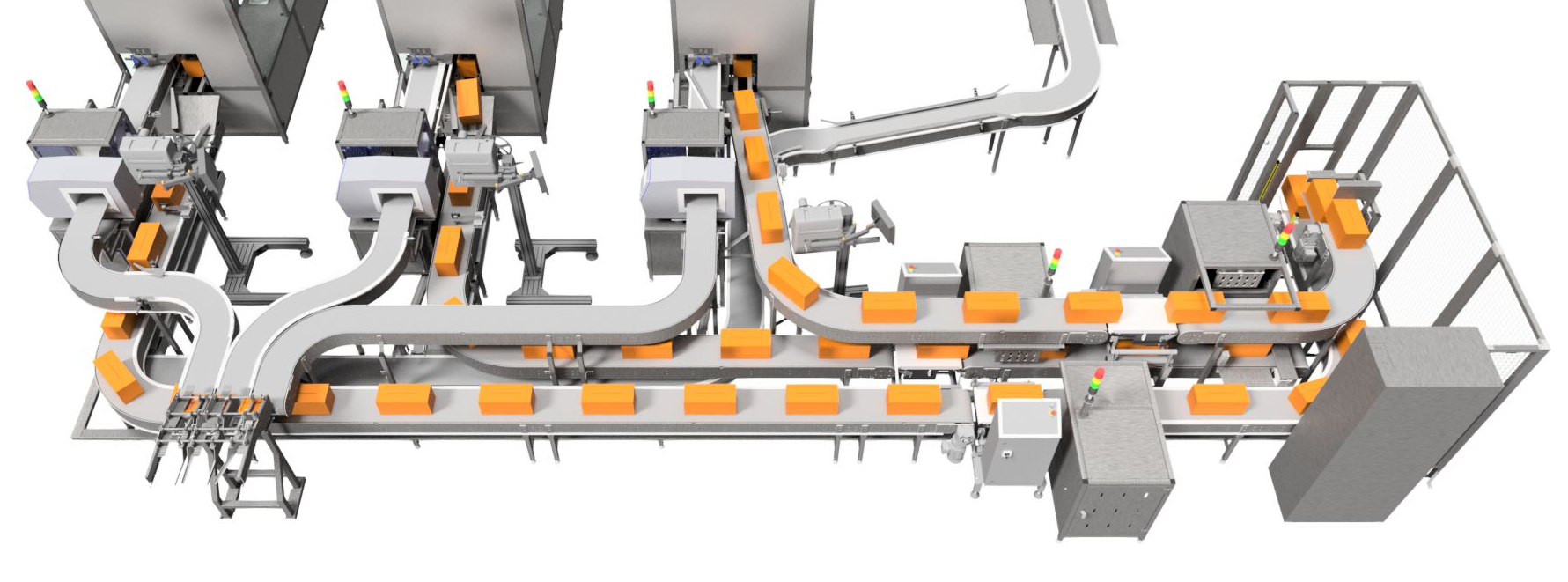

TS
Transport Systems Transportni sistemi
RPL
Robotic Packaging Line Robotska linija za pakovanje
RT
Robot Tracks Robotske šine
RW
Robot welding cells Robotske zavarivačke ćelije

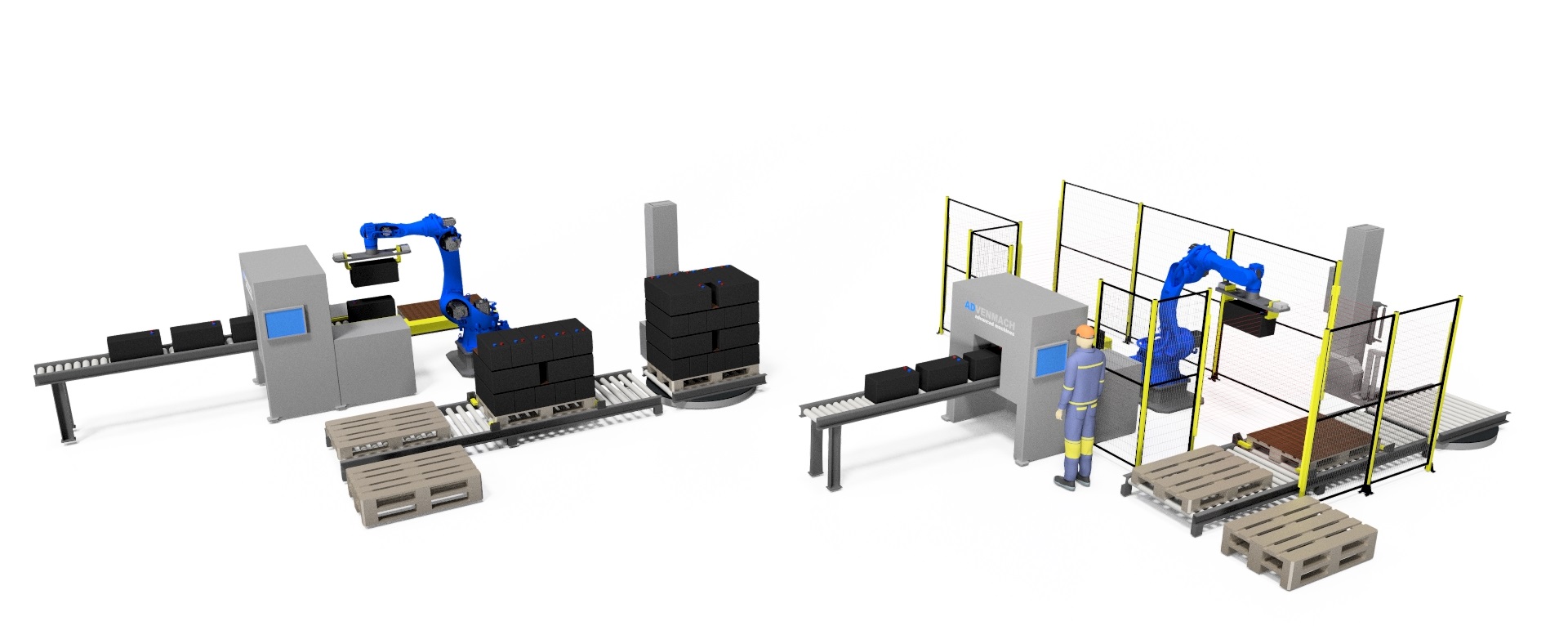

RP
Custom Palletizing Solutions Robotska paletizacija
LWM
Water Tank Cylinder Longitudinal Welding Mašina za uzdužno zavarivanje kotlova
CWM
Water Tank Circular/Radial Welding Machine Mašina za radijalno zavarivanje kotlova
RWE
Robot Welding System Robotsko zavarivanje priključaka
LTM
Leak Testing Machine Stanica za ispitivanje curenja kotlova
GSA
Gantry Systems Portalni sistemi
WTPL
Water Tank Production Line Automatska linija za proizvodnju kotlova

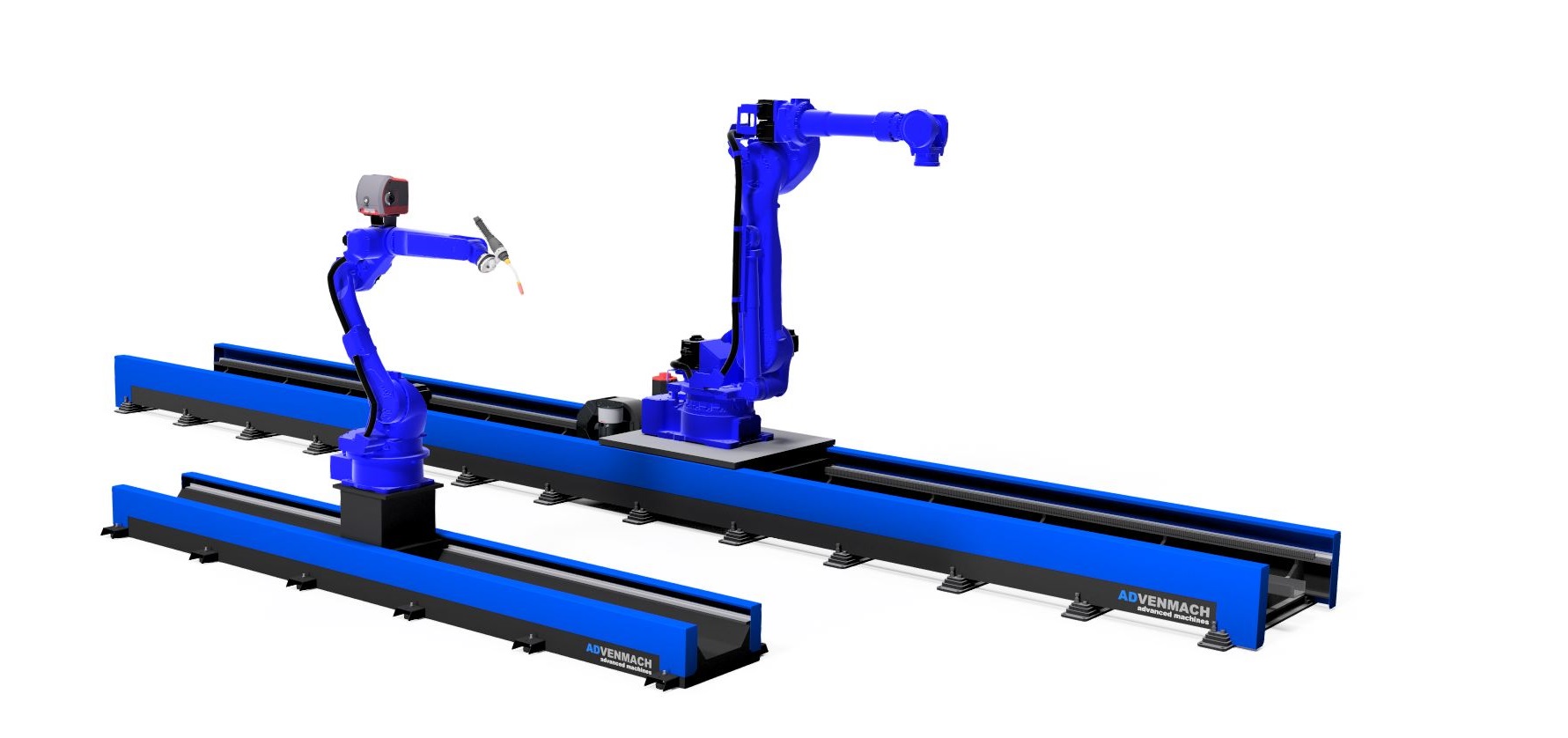

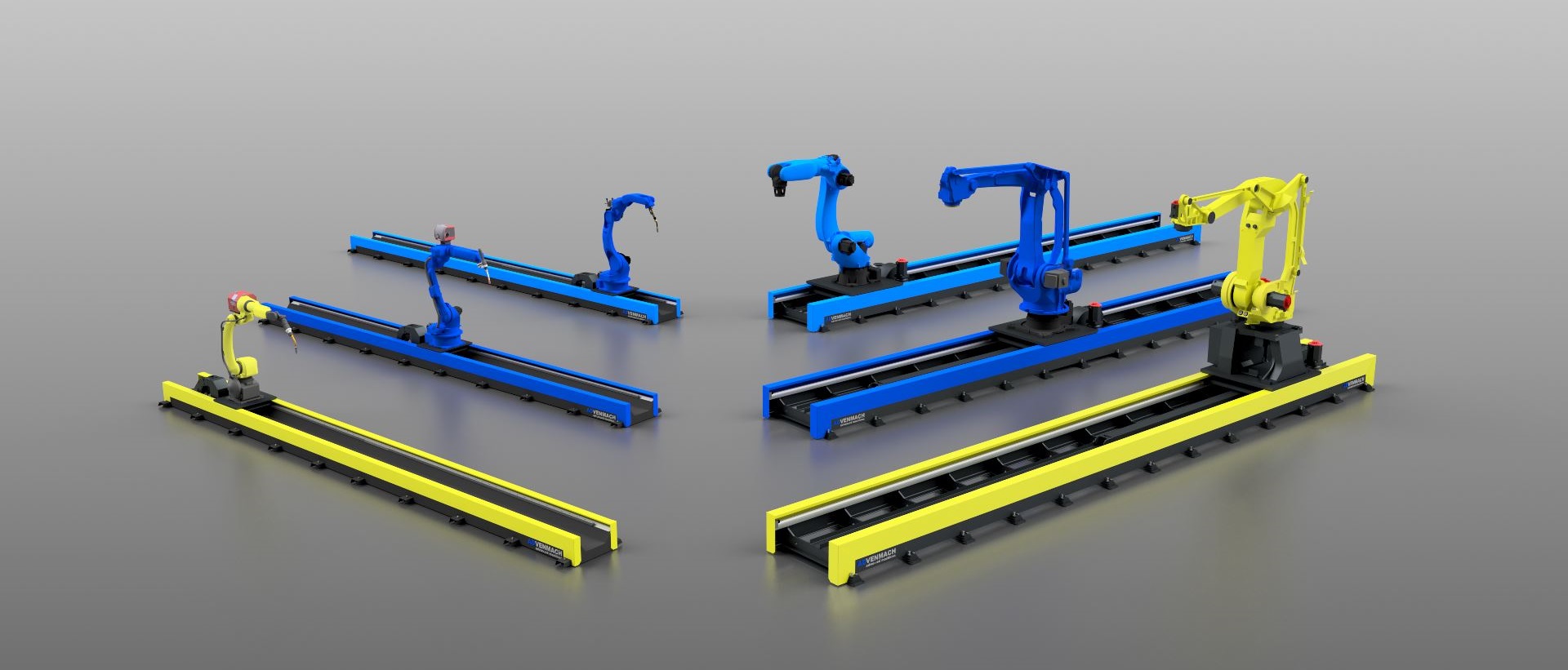

RT - Robot tracks
RTS800
All robot brands
Speeds up to 2m/s
Payload up to 500kg
Automatic lubrication
Stroke up to 15 meters
RTH1000
All robot brands
Speeds up to 1.5m/s
Payload up to 3500kg
Automatic lubrication
Stroke up to 18 meters
Easy system integration and installation

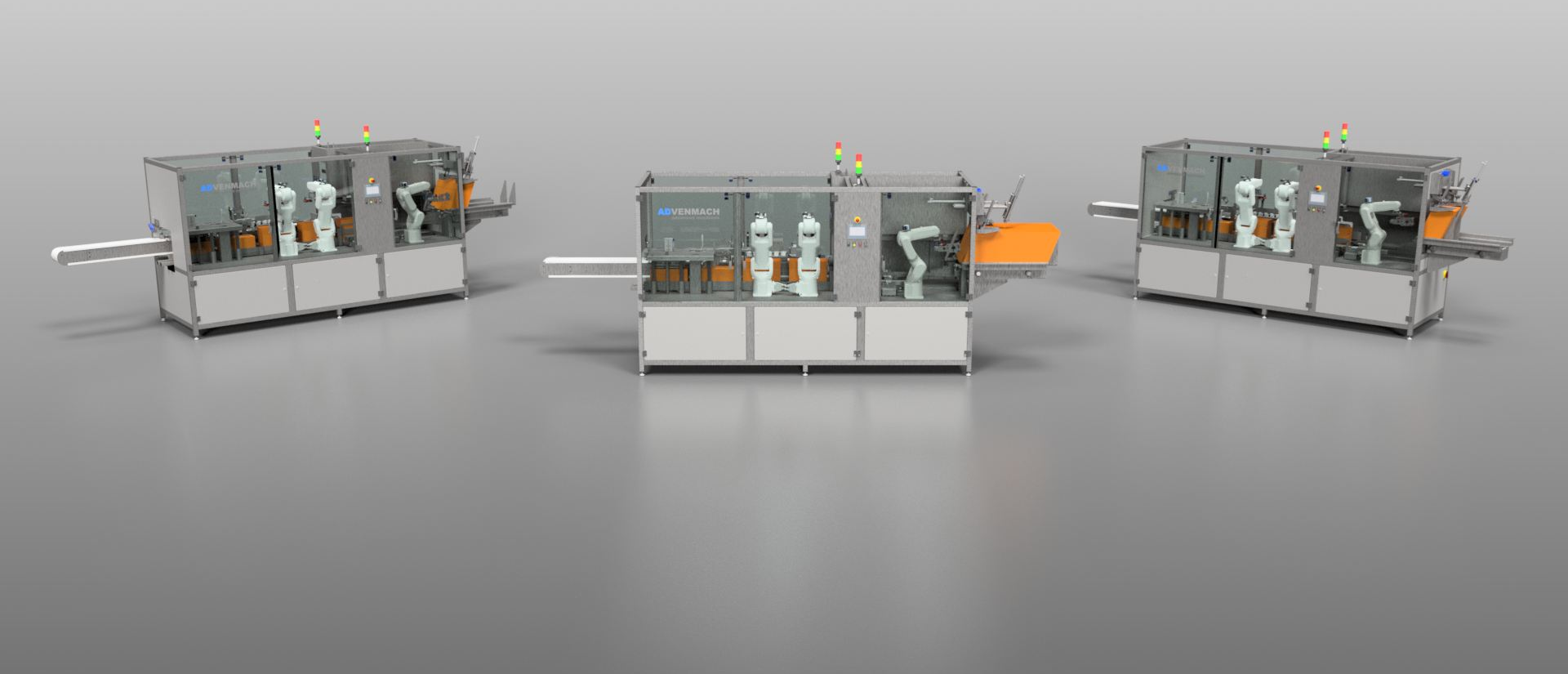

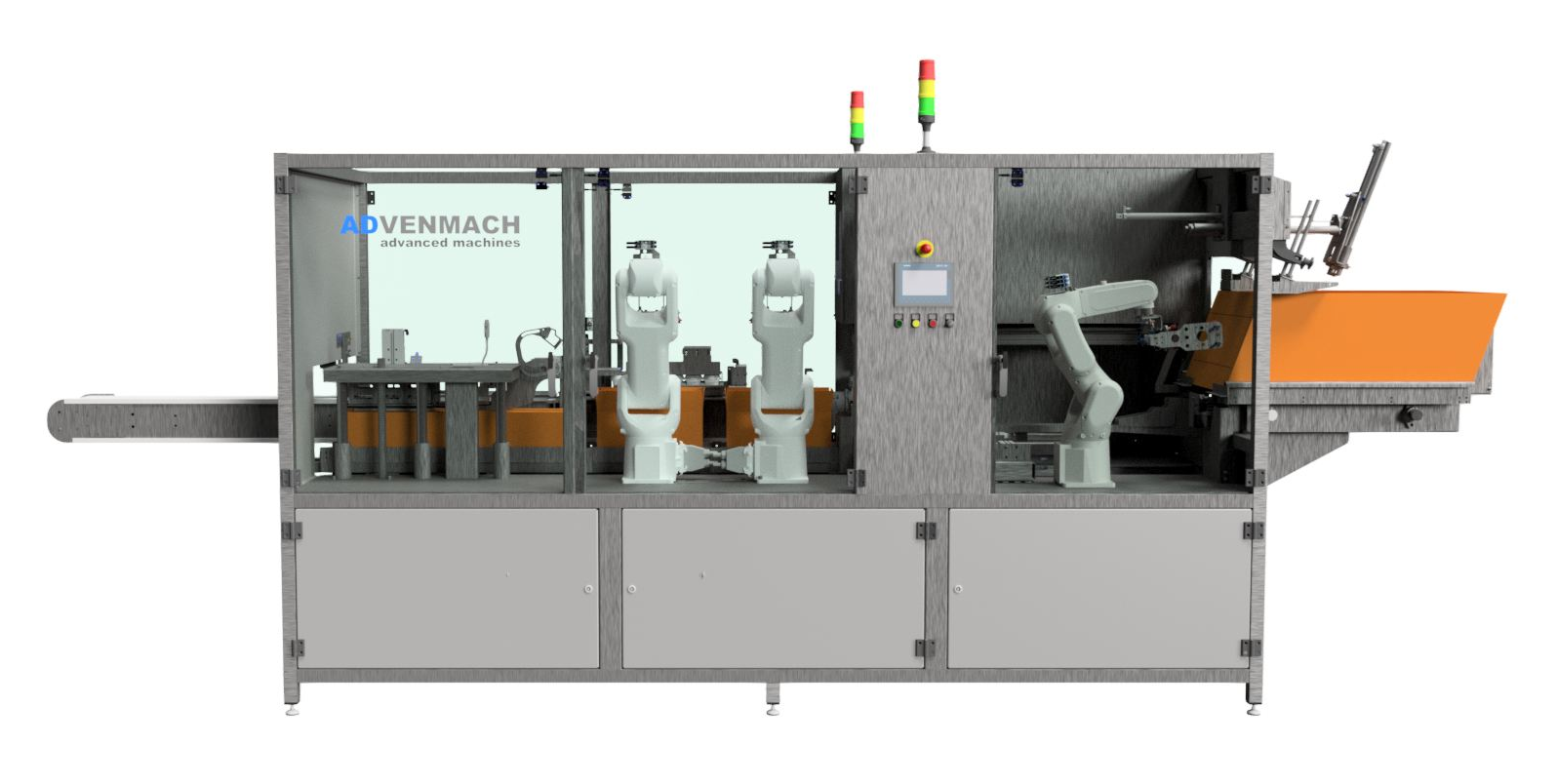

FPL - Robotic Packaging Cell
The most compact fully automated packaging
solution on the market
Automatic adjustment for different products
Automatic product positioning and alignment
Automatic robotic packaging
Automatic hotmelt bottom and top gluing
Automatic corrugated case labeling
Cell dimensions 4500x1300x2000mm
Packaging product weight up to 3kg
Max corrugated case dimensions 500x400x400mm
Max packaging capacity up to 13
courrugated cases in 1 minut
Fully integrated safety features
Food grade / Clean room certificate
Siemens S7-1500 control
Siemens S210 servo system
Festo pneumatic components
Nordson hotmelt system
Integration of Metal Detection Device as an option

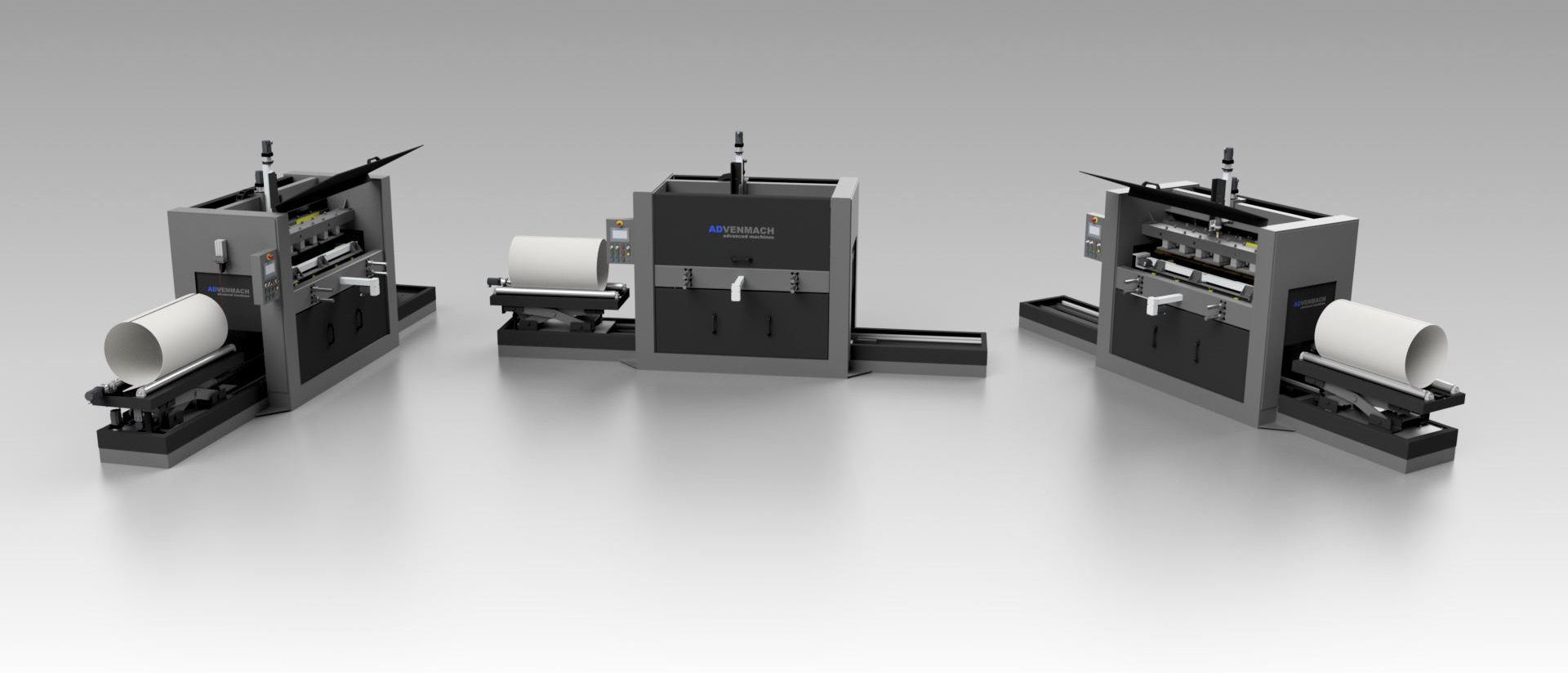

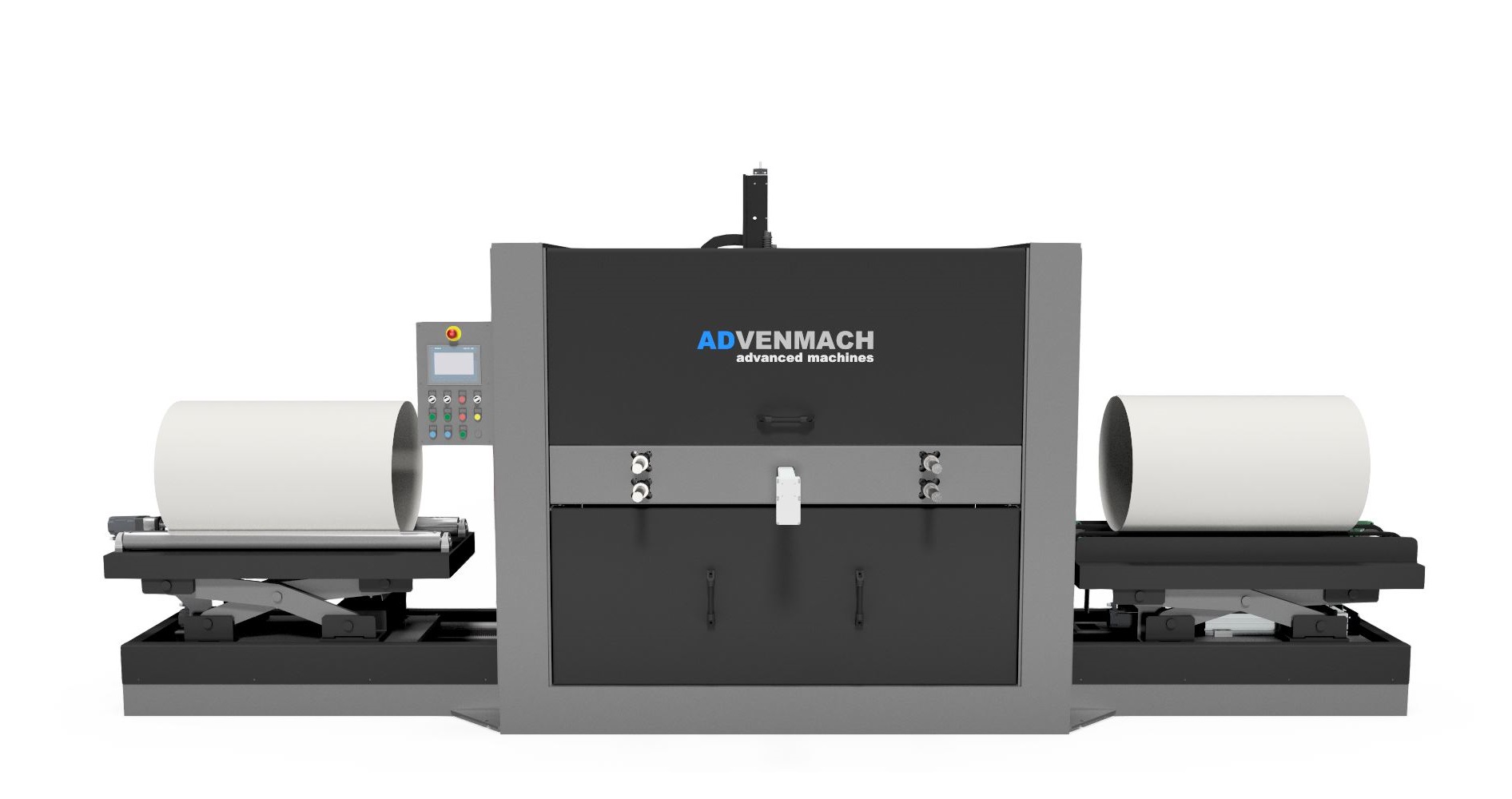

LWM - Water Tank Cylinder Longitudinal Welding Machine
Automatic seam detection
Automatic assembly and edge aligment
Automatic welding process
Automatic support bar and welding torch cleaning
Automatic product change
Possible working thickness from 1mm up to 5mm
Possible working lengths from 300mm up to 1500mm
Possible working diameters from 300mm up to 800mm
Siemens S7-1500 control
Siemens S210 servo system
10 servo axis in total
Welding seam pressing force 10kN
MIG/MAG, Laser welding technology
Easy production line integration

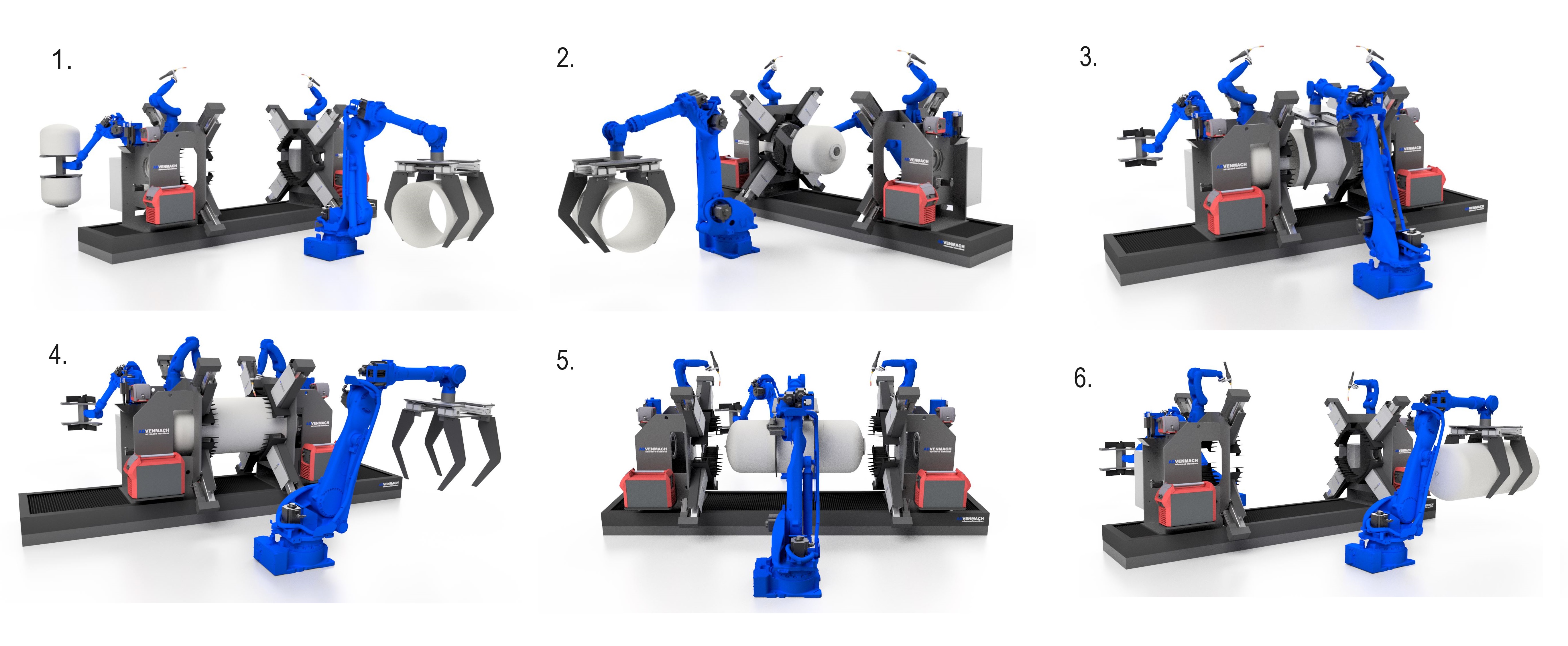

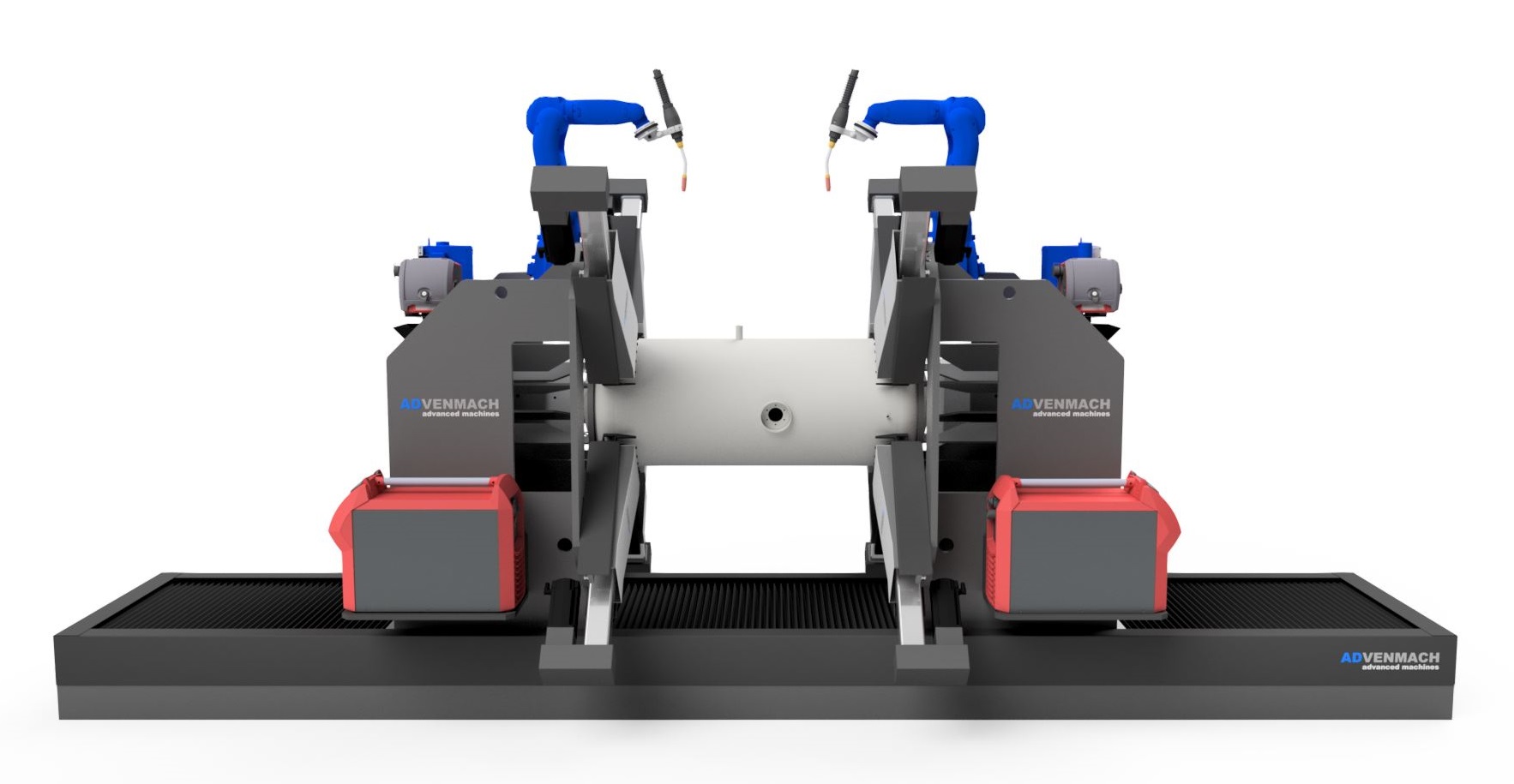

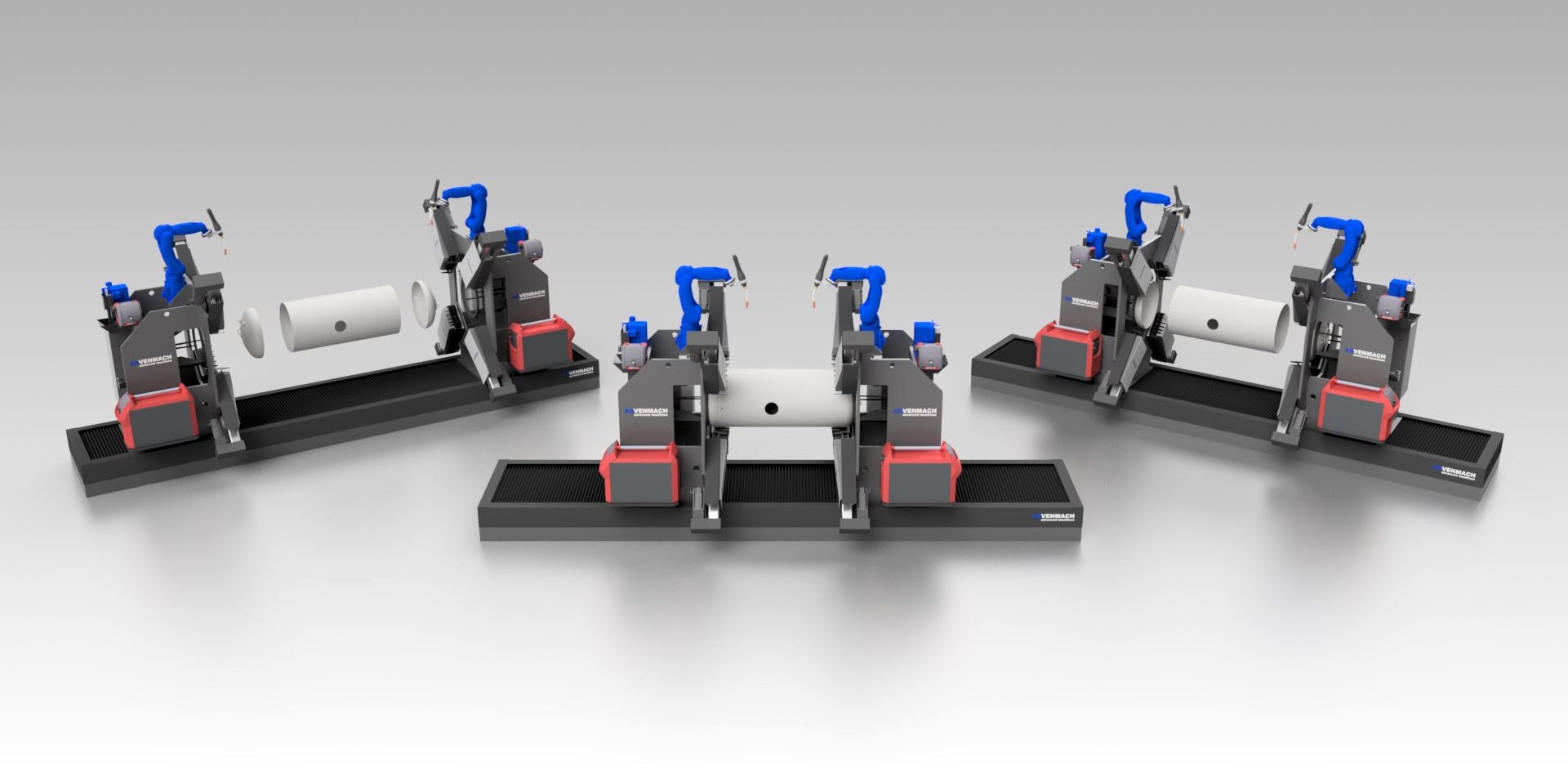

CWM - Water Tank Circular / Radial Welding Machine
Automatic welding seam detection
Automatic assembly and edge aligment
Automatic robot welding process
Automatic welding torch cleaning
Automatic adjustment to different tank lengts and diameters
Possible working thickness from 1mm up to 5mm
Possible tank lengths from 500mm up to 2000mm
Possible tank diameters from 350mm up to 800mm
Full servo drive, no hydraulics
Siemens S210 servo system, 11 servo axis
Water tank pressing force 3kN
Water tank caps and cylinder ovality compensation
MIG/MAG, Laser welding technology
Easy production line integration

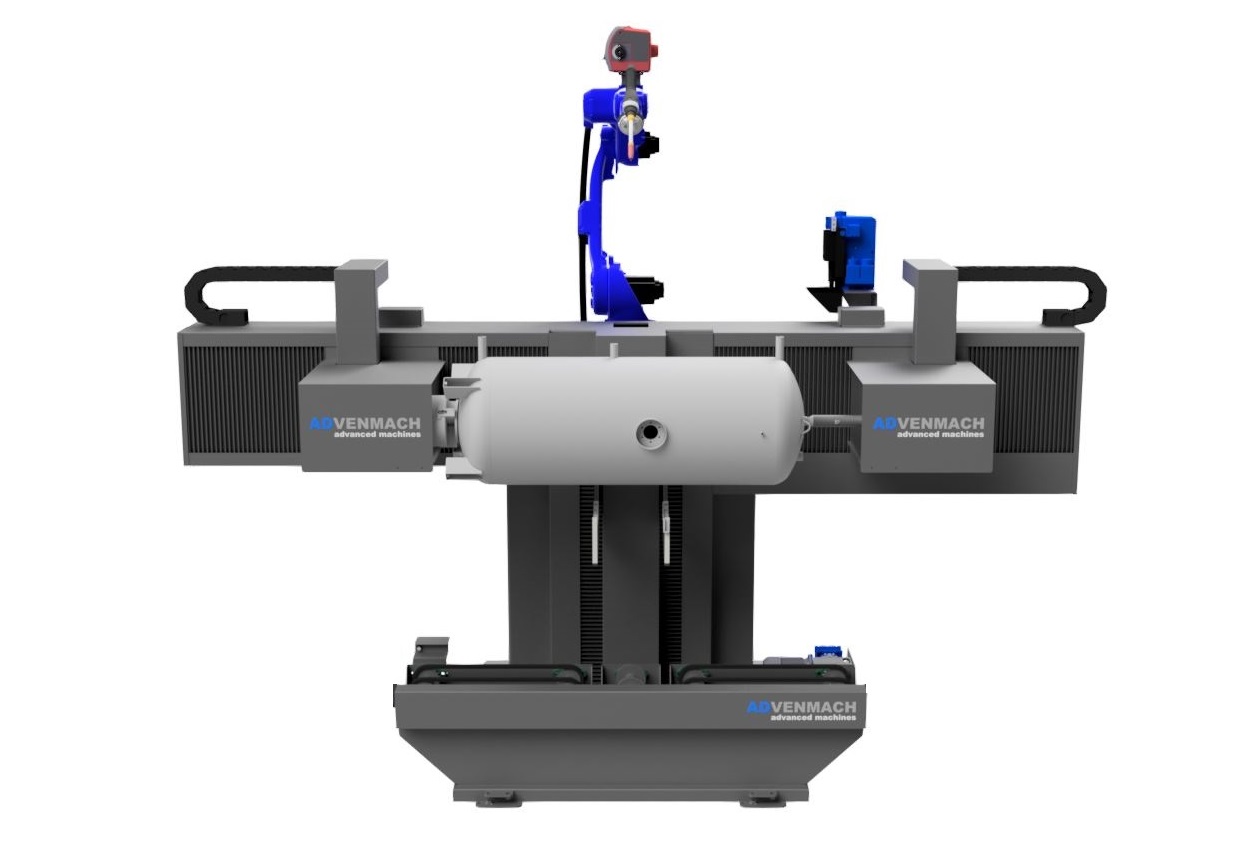

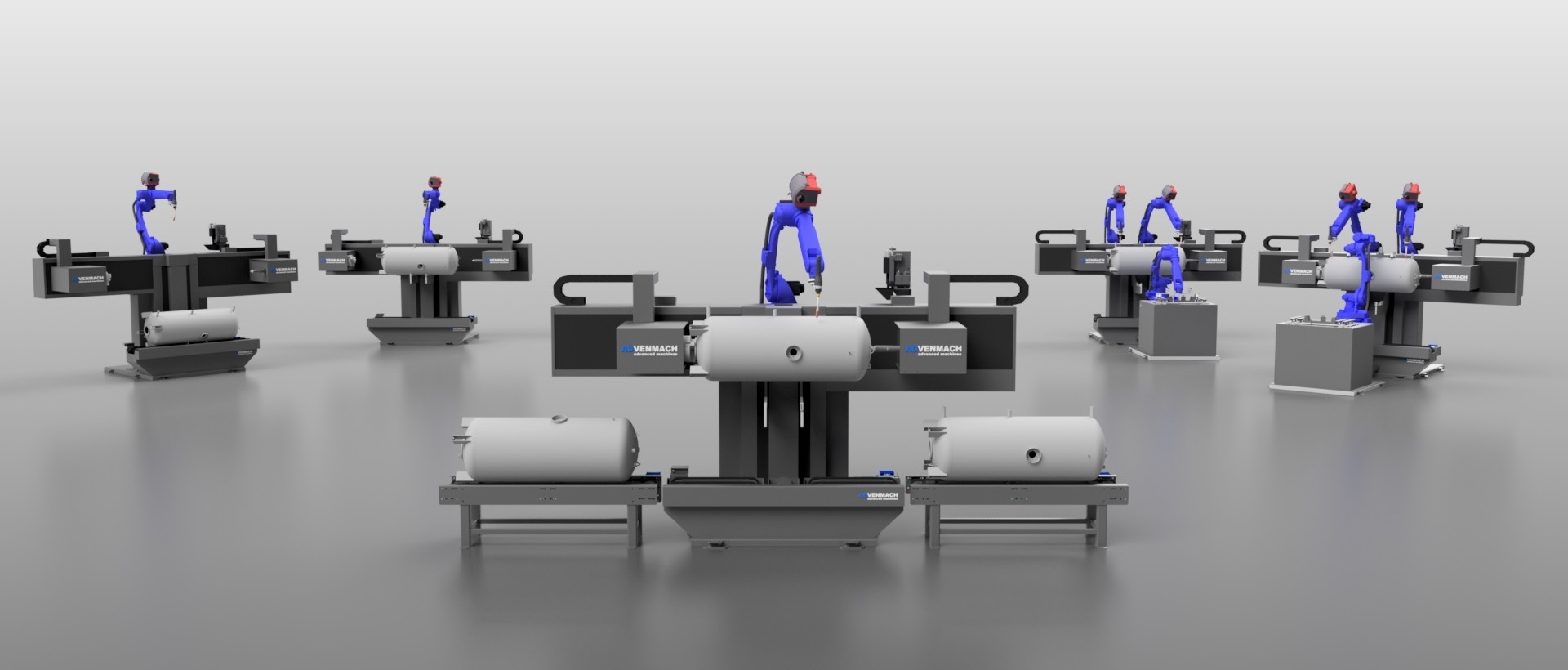

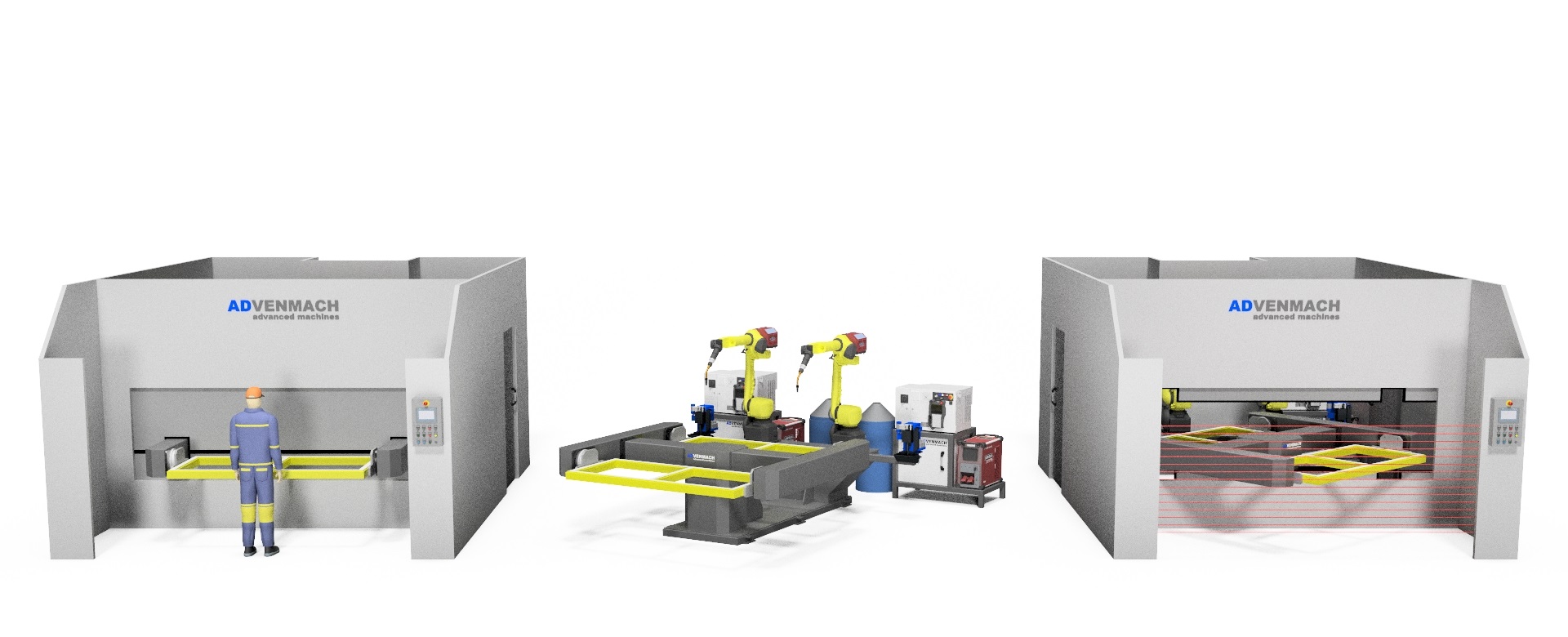

RWE - Robot welding system
Single or twin robot configuration
Work peace payload up to 500kg
Twin system Advenmach RPS positioners
Integrated 7th, 8th and 9th robot servo axis
Lincoln, Fronius, Megmeet welding equipment
Customizable system
Positioning tools design
Fully integrated safety features
Turn key solution
Programming Support
Yaskawa, Fanuc, CRP

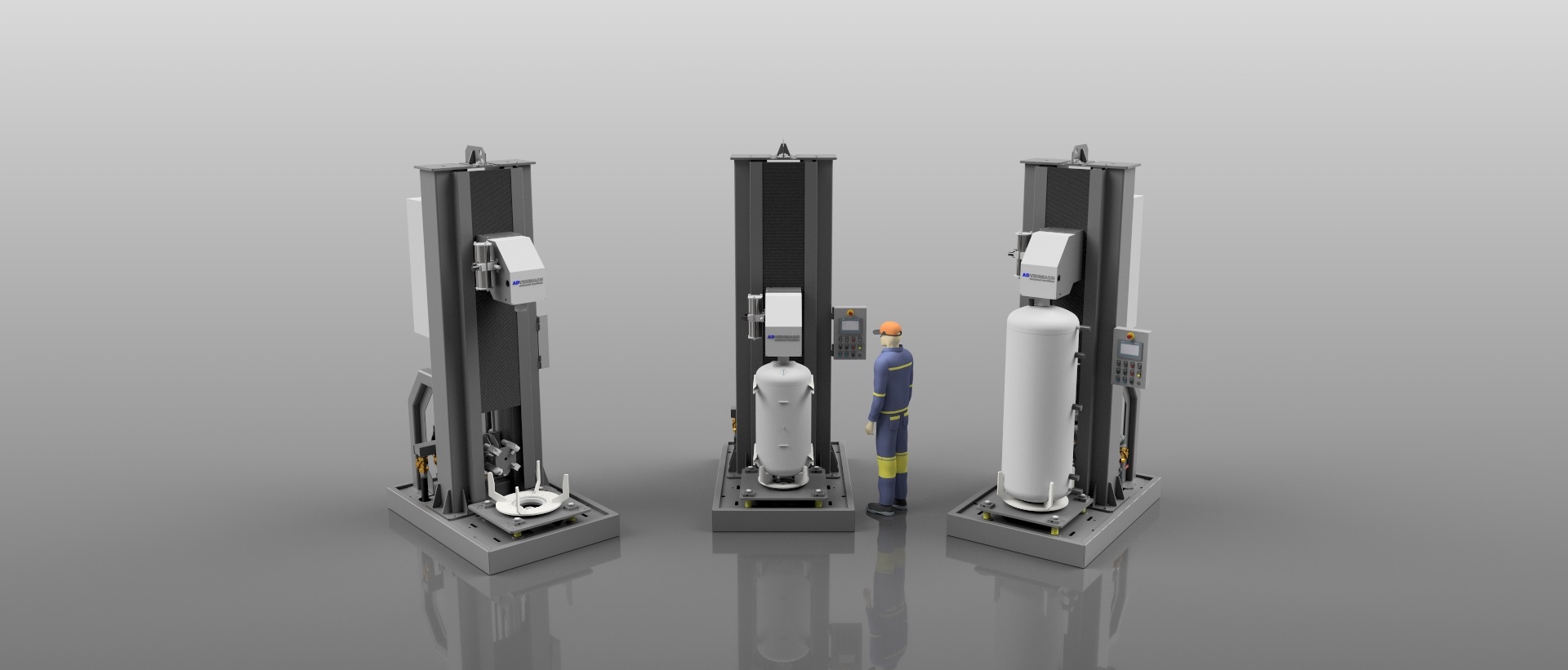

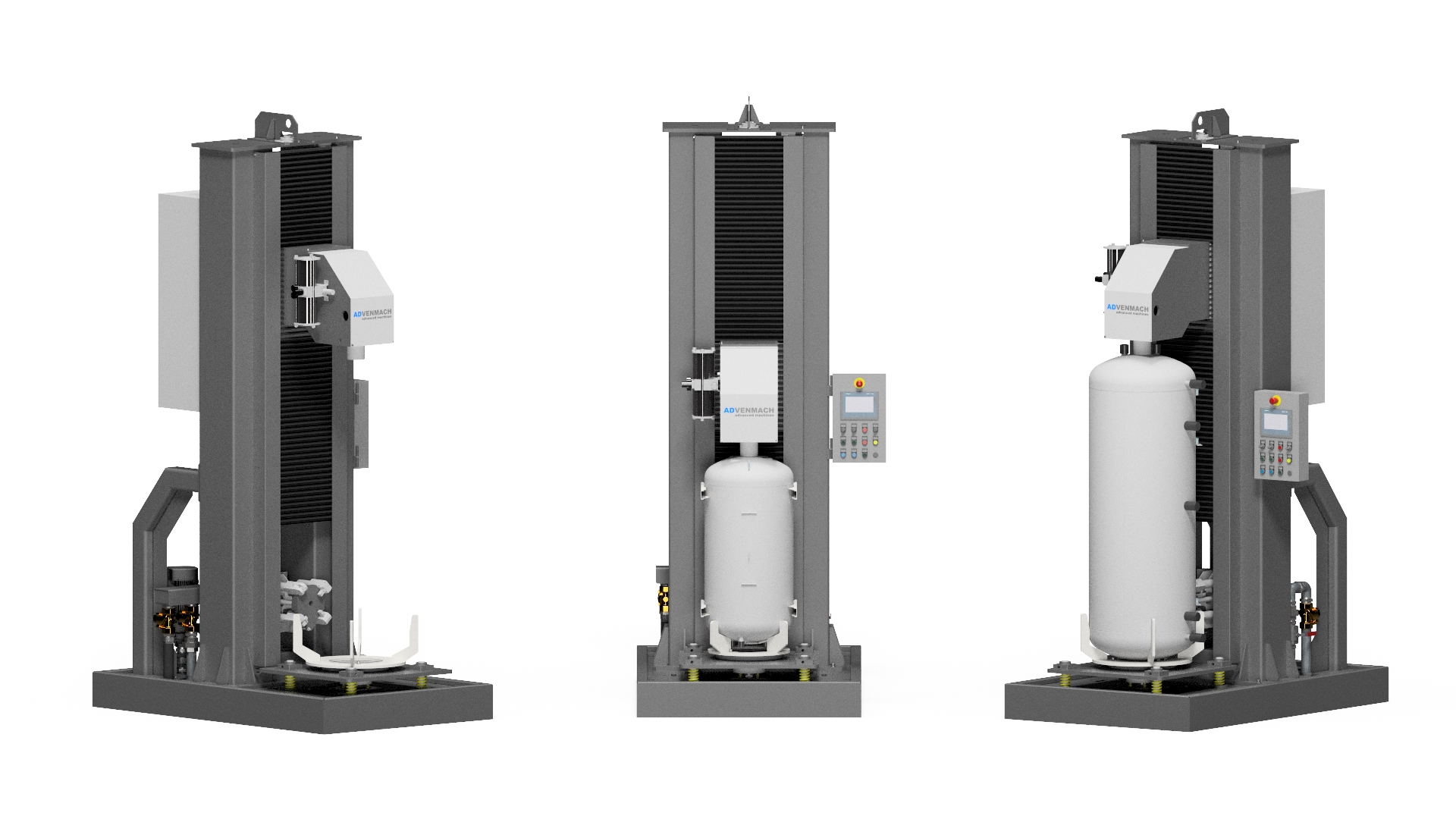

LTM - Water tank leak test machine
1. Loading water tank
2. Sealing side holes by operator
3. Activating and sealing by Z axis
4. Leak testing by pressurised air up to 5 bars
5. If leak detected, pumping water
in the tank at 300L/min
6. Pressurising water up to 20 bars to detect
leak spot and test the water tank weldments
7. Pumping water out at the same rate
8. Lifting the Z axis and removing the tank
No additional water reservoirs
Machine vertical columns serve as water storage
Automatic sealing from top and bottom by servo Z axis
Programmable Z axis positioning and pressing force
Possible working lengths from 500mm up to 2000mm
Possible working diameters from 300mm up to 800mm

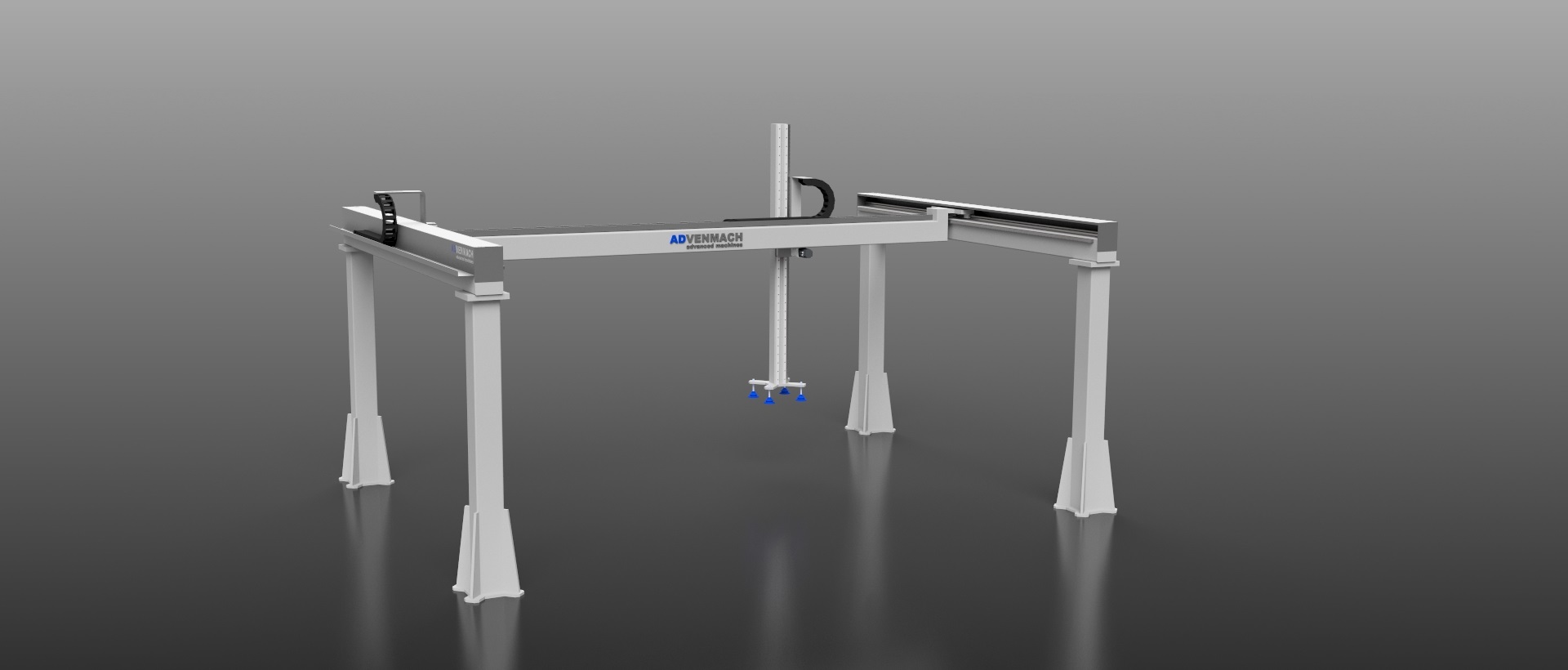

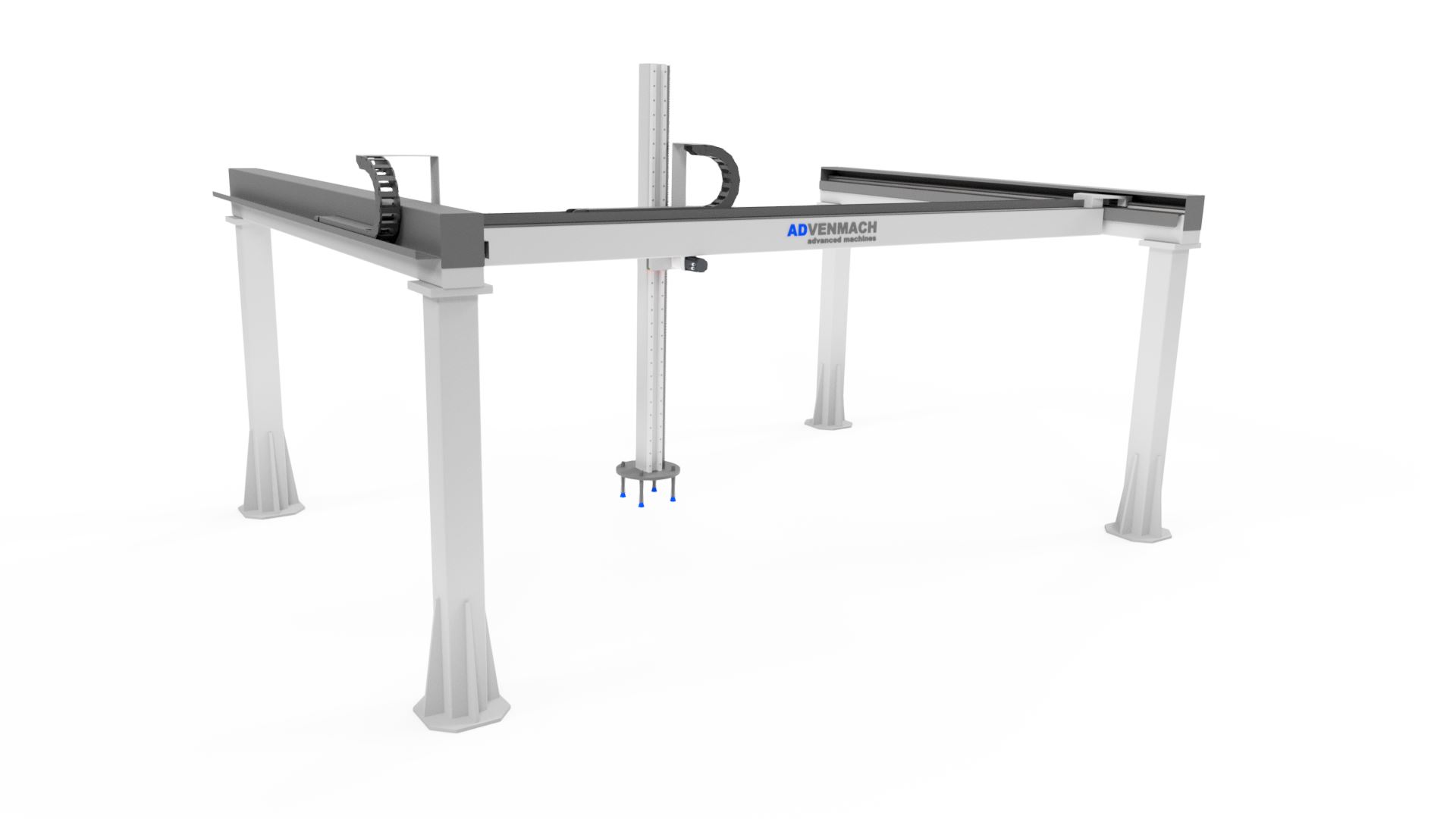

GSA - Gantry Systems
Servo driven X, Y, Z axis
Rack and pinion drive system
X stroke up to 15 meters
Y stroke up to 8 meters
Z stroke up to 3 meters
Payload up to 200kg
Speeds up to 1.5m/s
Positioning +/- 0.5mm
Custom gripper design
Mechanical, vacuum

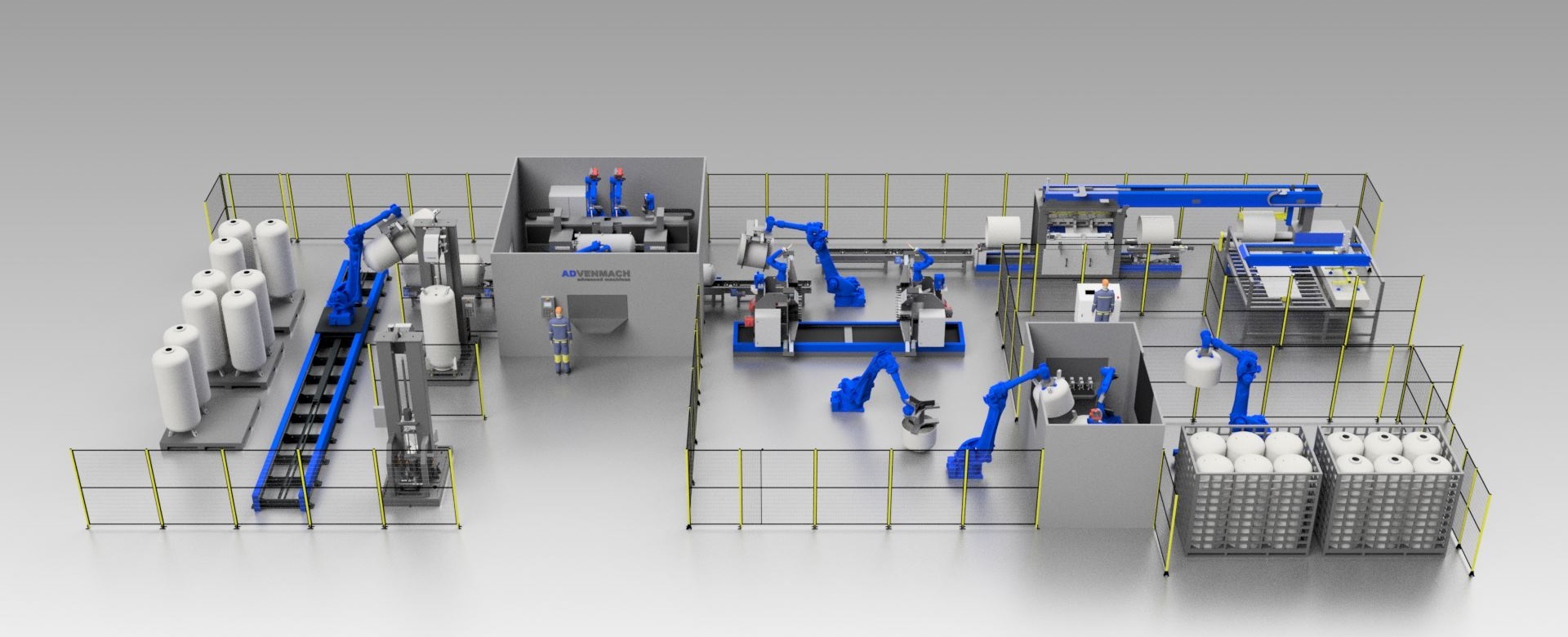

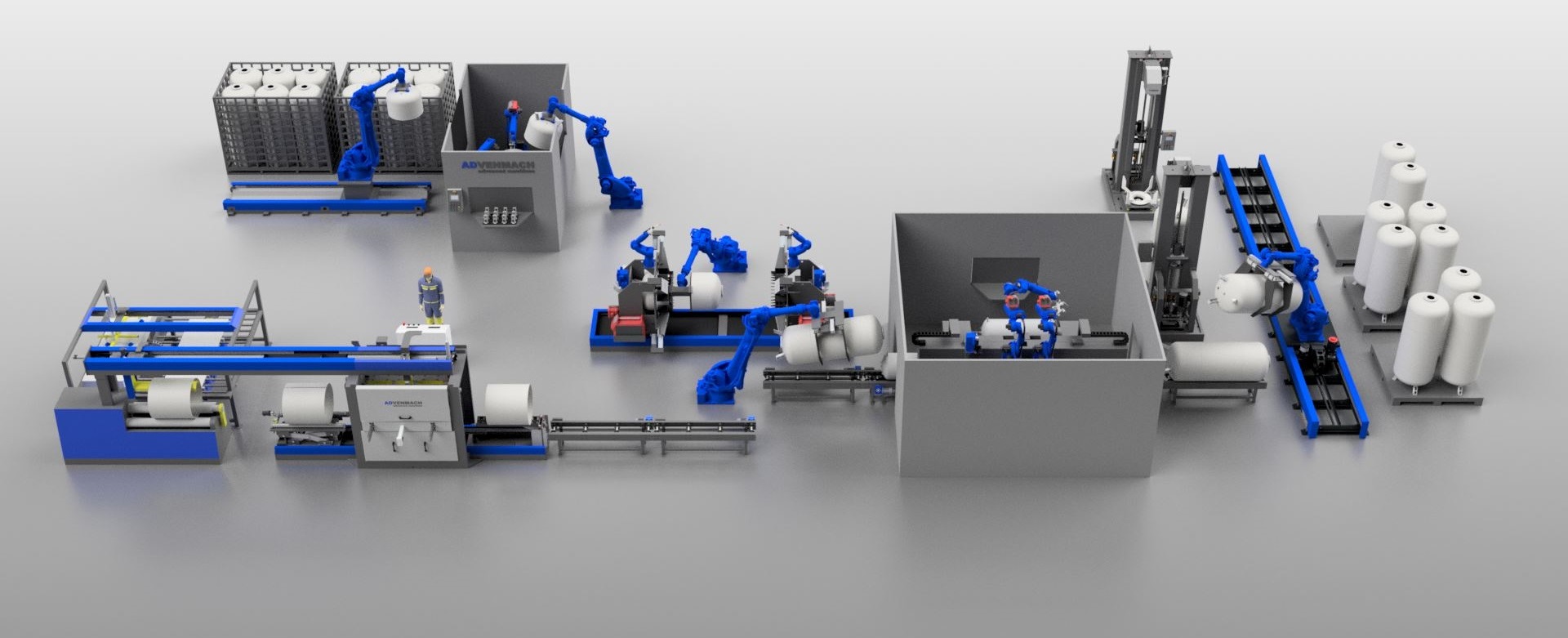

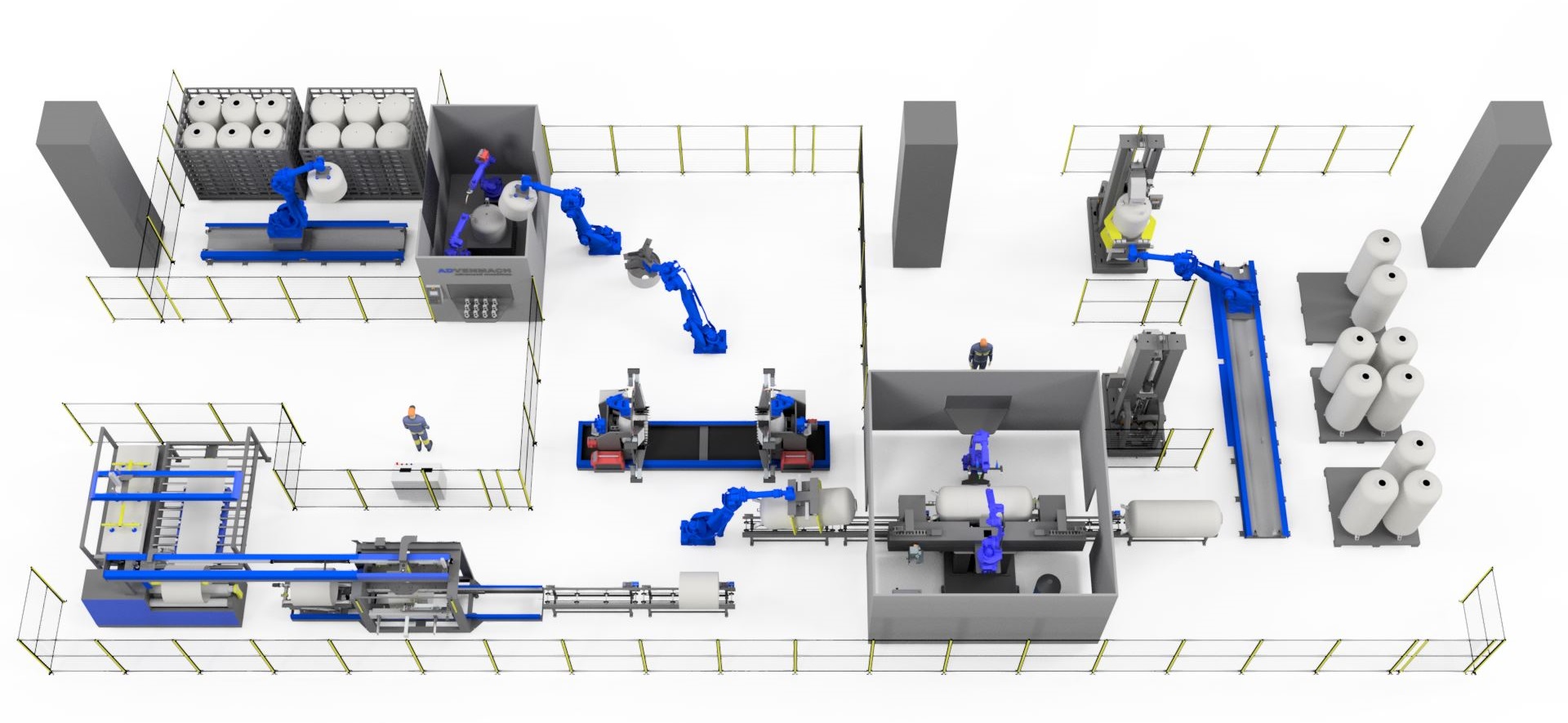

WTPL - Water Tank Production Line
Turn key solution
