Water tank production line Automatska linija za proizvodnju kotlova

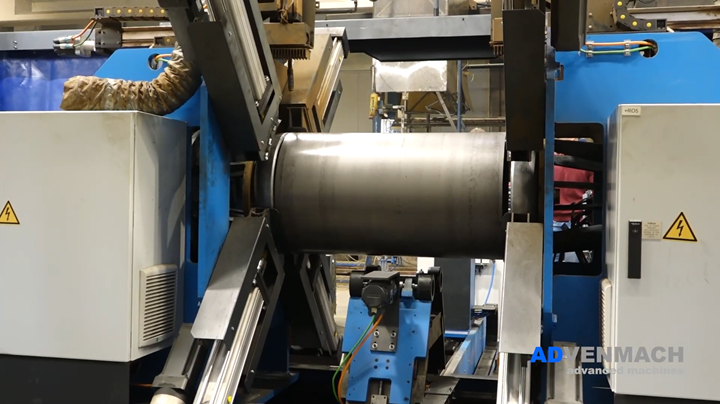

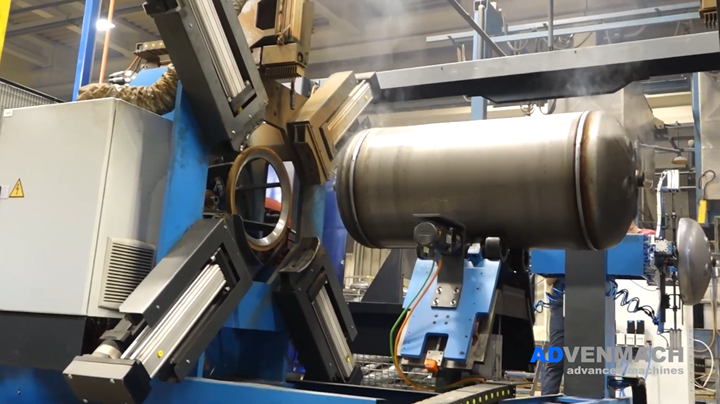

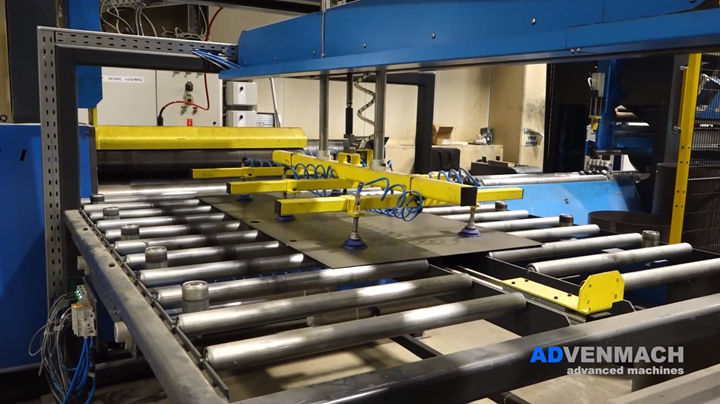

Automatska linija za proizvodnju kotlova je projekat gde od table lima na kraju dobijemo zavaren kotao sa svojim bar-kodom.

Sistem ima 28 servo osa, kao i mnoštvo pneumatskih osa. Koristili smo Siemens elektro opremu, kao i Festo elektro-pneumatsku opremu. Senzorika Balluff.

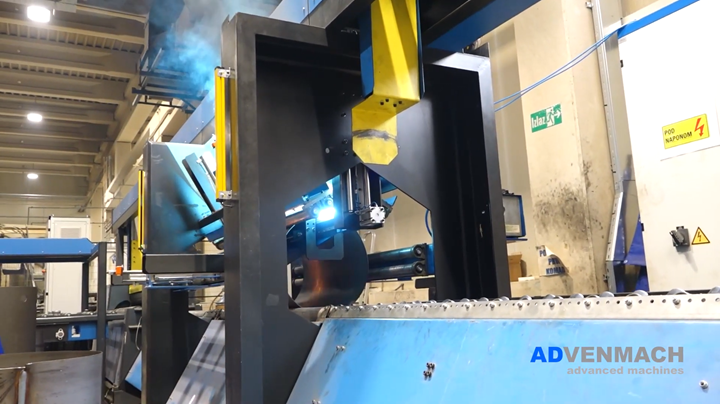

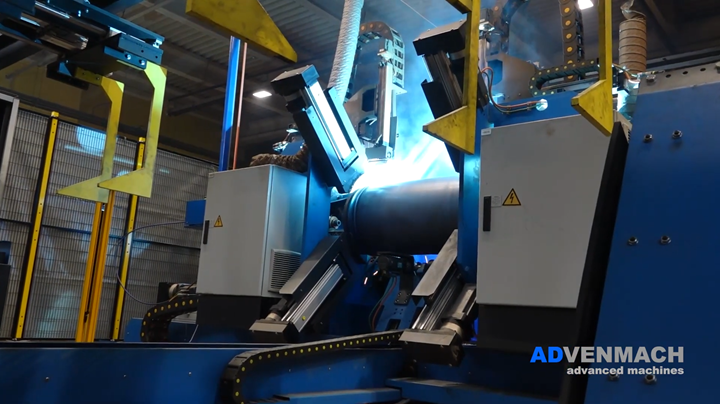

Zavarivačka oprema Fronius TPS 400i.

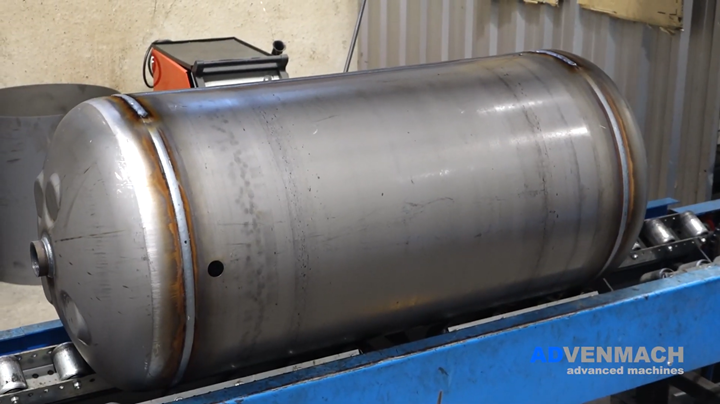

Automatska linija za proizvodnju kotlova proizvodi kotlove prečnika od 300 do 600mm, kao i dužine kotlova od 800 do 1800mm.

Ovaj projekat je podrazumevao kompletno projektovanje, izradu i puštanje u rad kompletne linije od strane ADVENMACH DOO.

The automatic line for the production of boilers is a project where we end up with a welded boiler with its own barcode.

The system has 28 servo axes, as well as numerous pneumatic axes. We used Siemens electrical equipment, as well as Festo electro-pneumatic equipment. Sensory Balluff.

Welding equipment Fronius TPS 400i.

The automatic line for the production of boilers produces boilers with diameters from 300 to 600mm, as well as boilers with lengths from 800 to 1800mm.

This project included the complete design, manufacture and commissioning of the complete line by ADVENMACH DOO.
