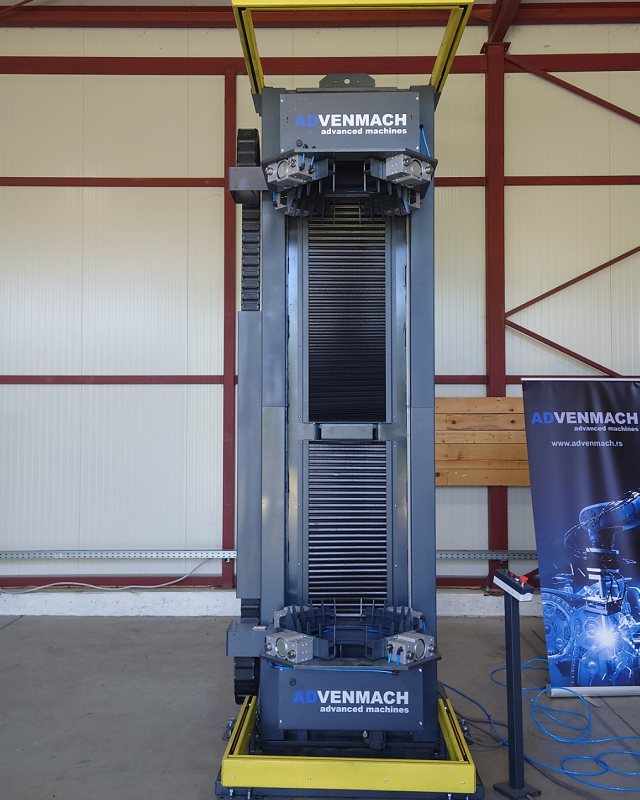

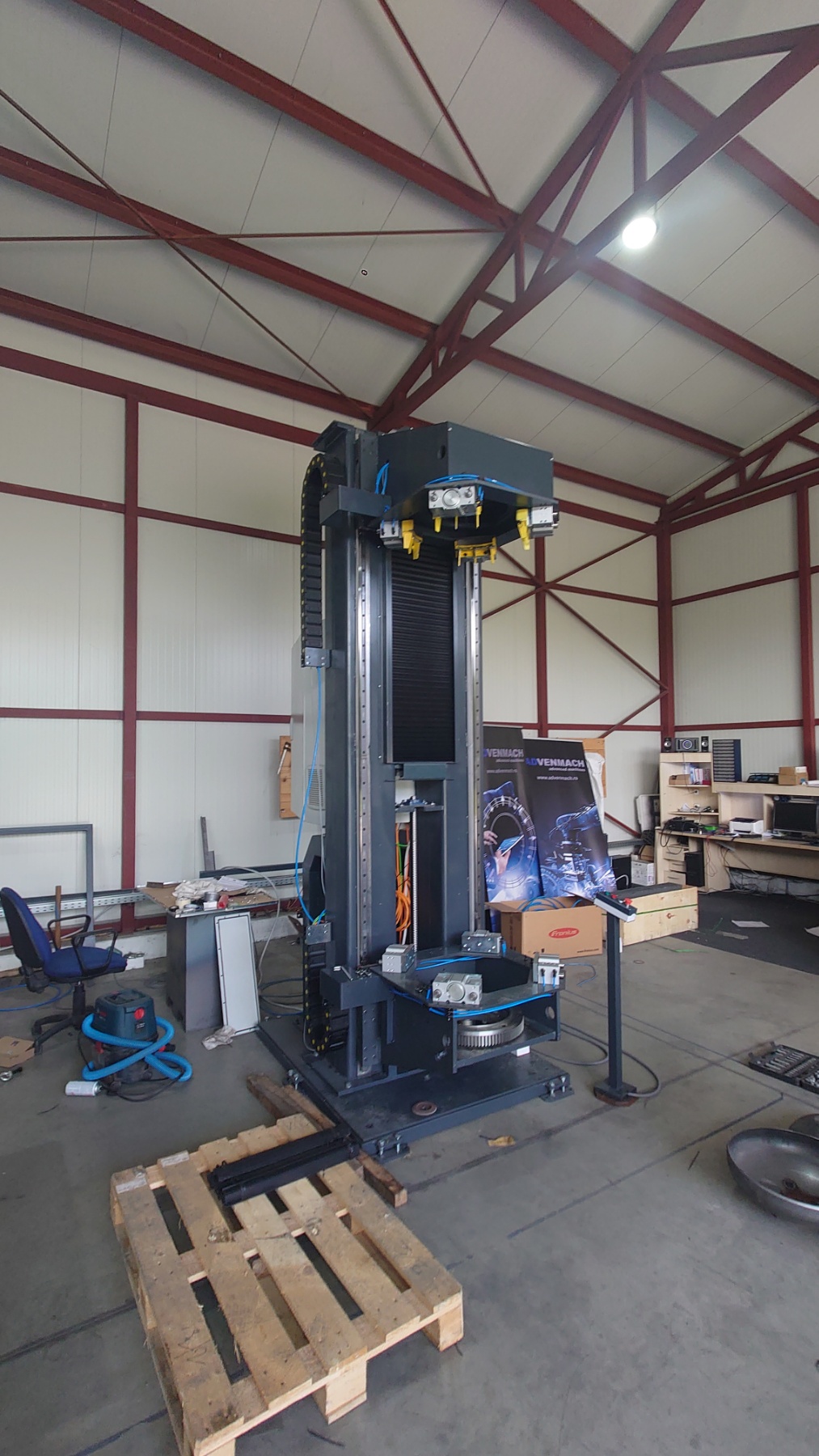

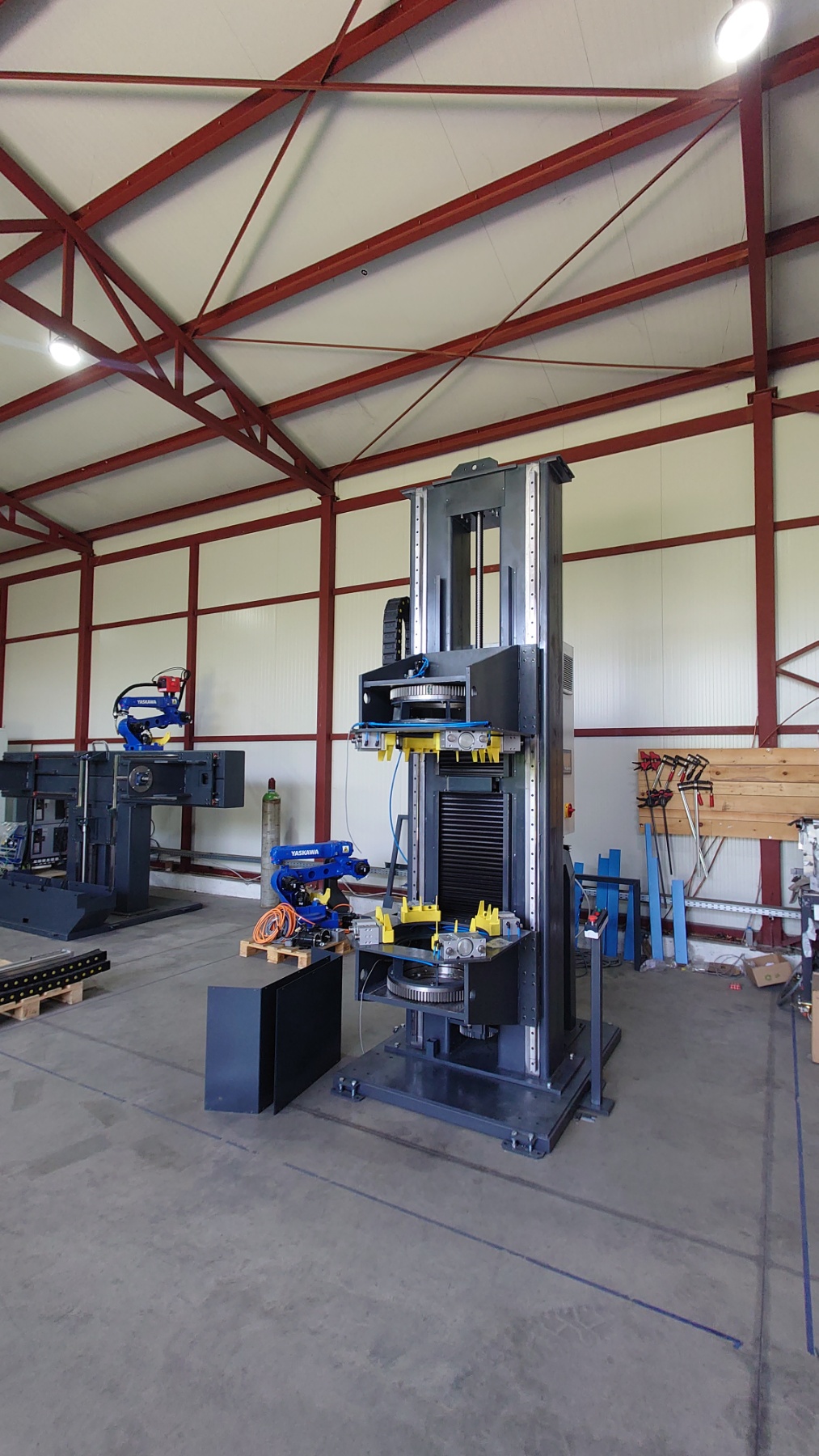

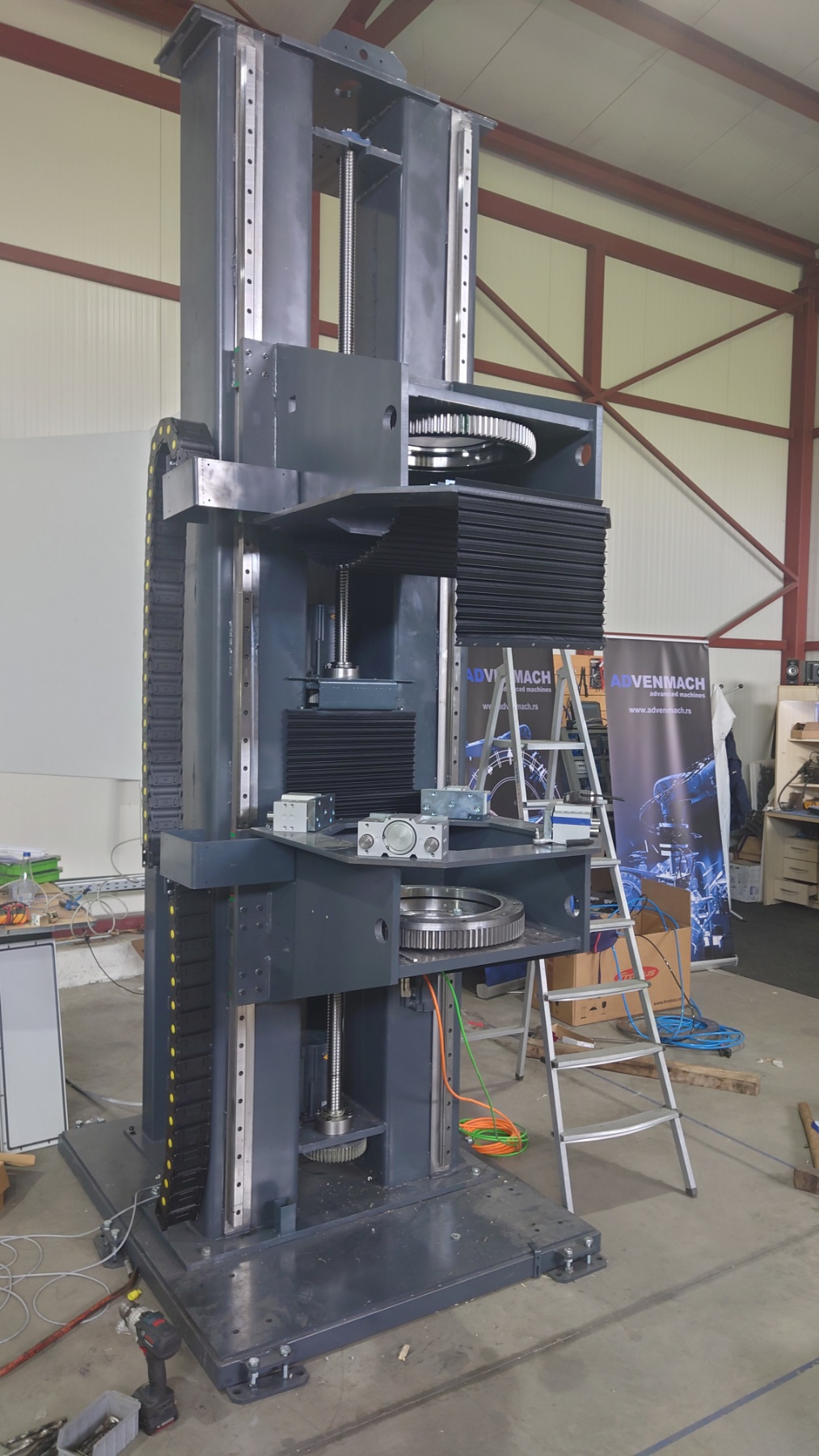

Water Heater Vertical Assembly Machine Sistem za vertikalno uklapanje kotlova

Sistem za vertikalno uklapanje kotlova se sastoji od 8 pneumatskih, kao i 3 servo ose.

U ovom sistemu se uklapaju kotlovi nakon čega sledi ručno heftanje. Operater postavlja danca u gornji i donji prihvat, postavlja plašt i mašina je spremna za uklapanje.

Sistem je projektovan za uklapanje kotlova prečnika od 300 do 550mm.
Jedan operater je potreban za ovaj sistem.

Ovaj projekat je podrazumevao kompletno projektovanje, izradu i puštanje u rad kompletnog sistema od strane ADVENMACH DOO.

The system for vertical fitting of boilers consists of 8 pneumatic and 3 servo axes.

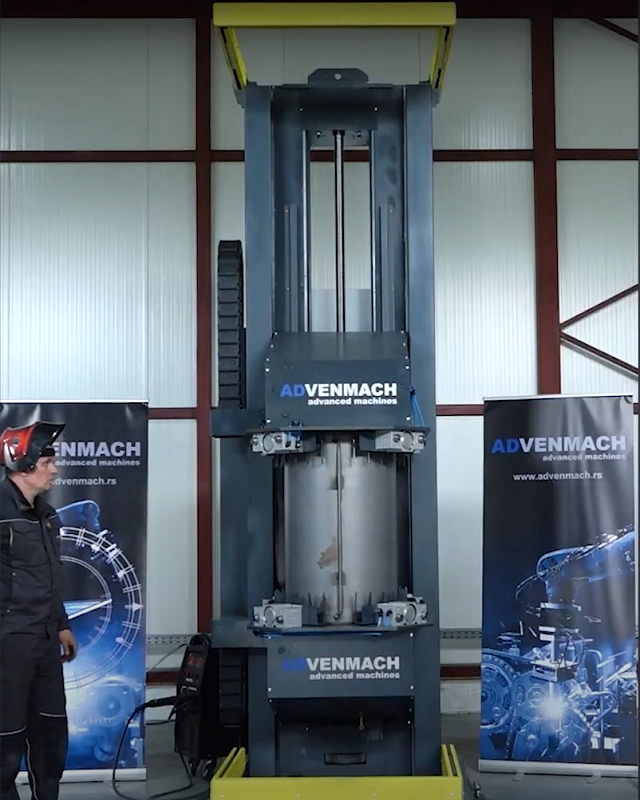

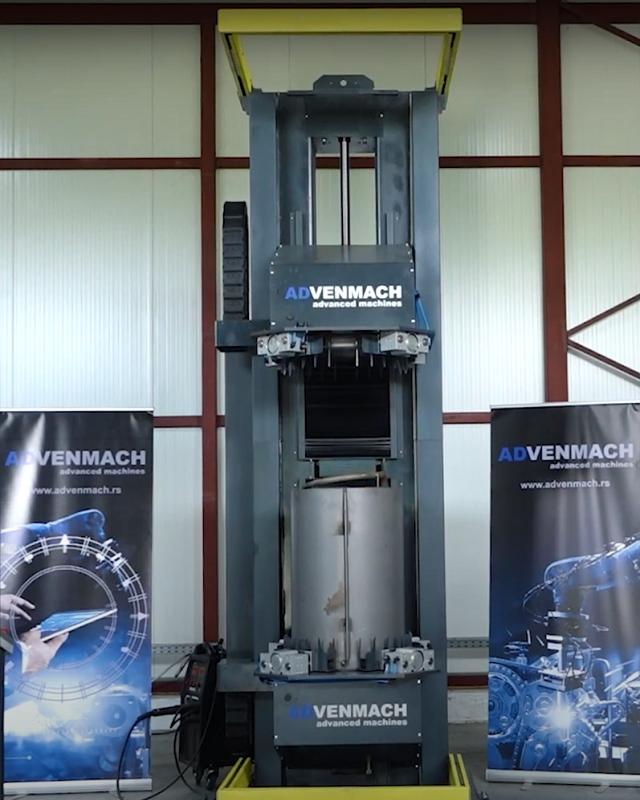

In this system boilers are fitted followed by manual stapling. Placing the cap in the upper and lower grips, inserting the mantle and the machine is ready for fitting.

The system is designed to fit boilers with a diameter of 300 to 550 mm.
One operator is required for this system.

This project included the complete design, manufacture and commissioning of the complete line by ADVENMACH DOO.
